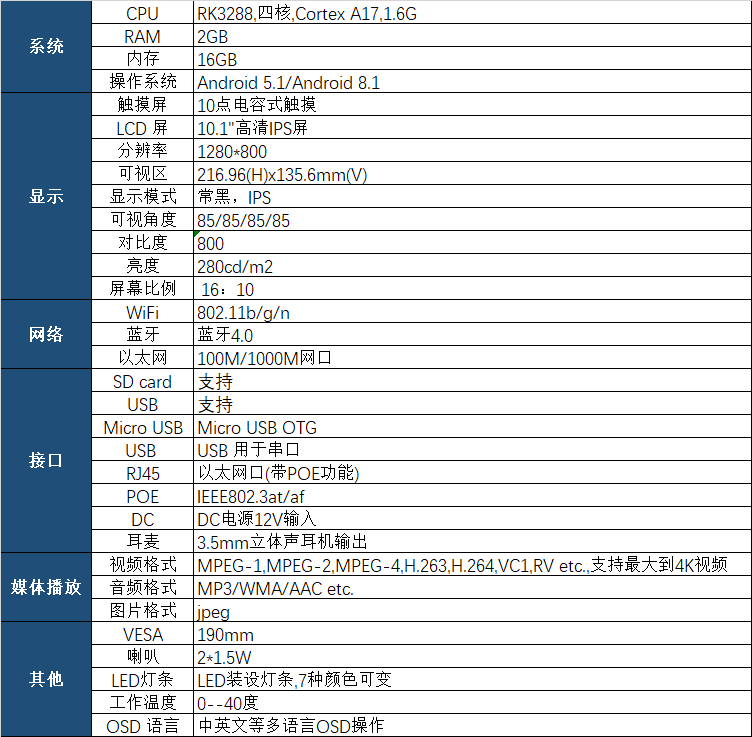

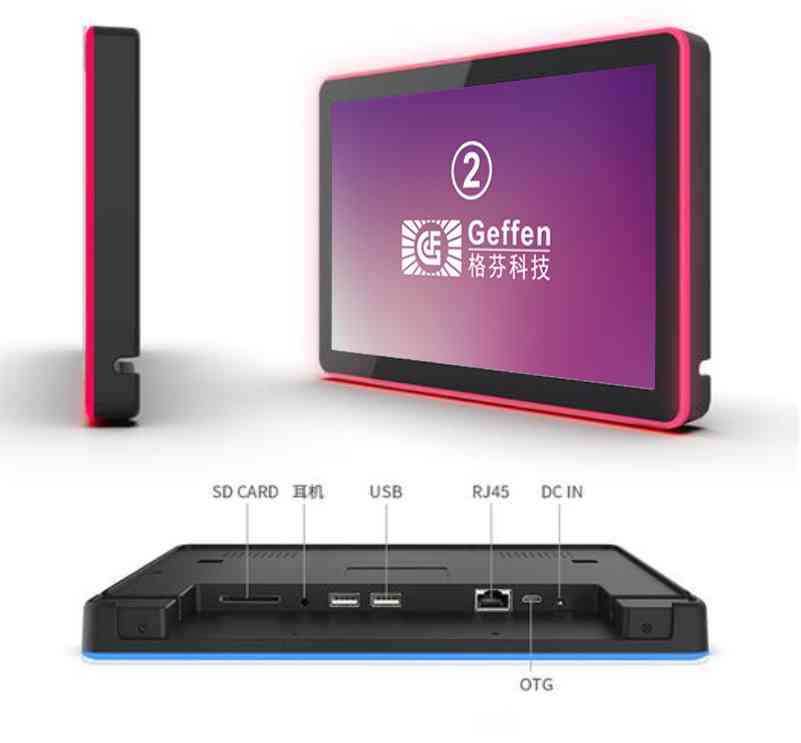

●10.1"高清屏 分辨率: 1280x800
●RK3288 四核 cortex A17/RK3399 双核 A72+四核 A53
●RK3566/3568 四核 cortex A55RAM 2GB(RK3288)，可选4GB(RK3399/3566/3568)内存16GB，可选32GB/64GB(RK3399/3566/3568)Android 5.1/8.1/10.0(RK3288) / Android7.1/9.0/10.0(RK3399)Android11(RK3566/3568)
●10点电容式触摸
●Wi-Fi802.11 a/b/g/n/ac (RK3399 ),W-Fi802.11b/g/n (RK3288/3566/3568)蓝牙4.2
●以太网接口(标配POE功能 IEEE802.3at,POE+,class 4，25.5W)USB用于串口(RS232 电平 RK3288/3399)
●USB 用于串口(TTL 电平 RK3566/3568)
●USB 2.0 host (RK3288)
●USB 3.0 host(RK3399/3566/3568)
●3.5mm立体声耳机输出+麦克风输入
●Micro USB OTG
●Microphone
●SD card
●喇叭2*1.5W

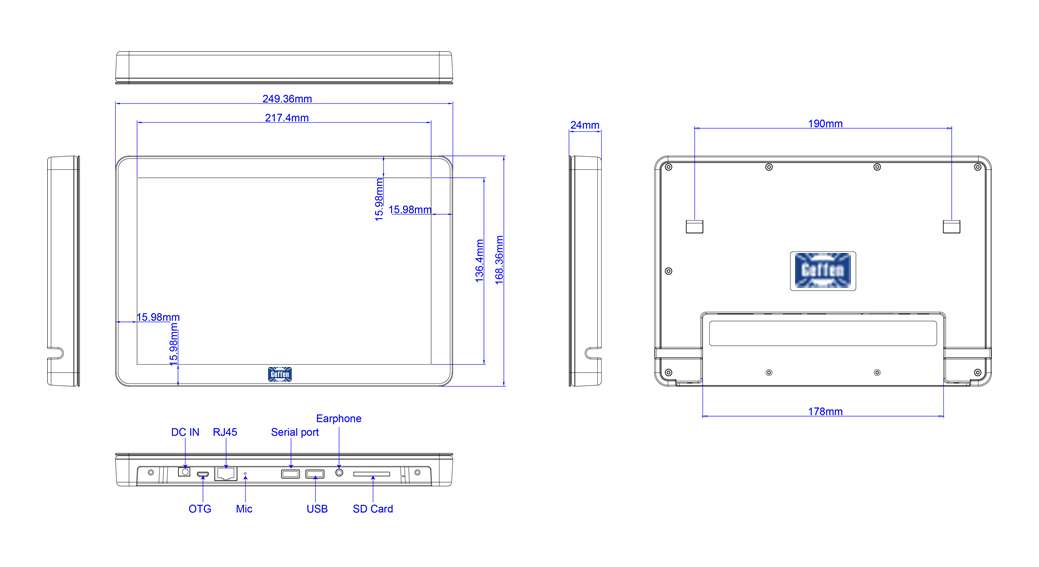

●壁挂孔位:190mm
